The Apple II
v2.0 12 Dec 01

HARDWARE AND FIRMWARE

No hacker is completely satisfied with a project he is working on as long as it is possible to make improvements that make it better in some way. After Wozniak had completed design on the Apple-1, he already had in mind enhancements that would make his computer faster and more functional. He wanted to make it display in color. He worked to combine the terminal and memory functions of the Apple-1 by moving the display into main memory, allowing instant screen changes. None of these modifications were made specifically to make it a better product, or to make it more attractive for a customer to purchase. Wozniak stated:

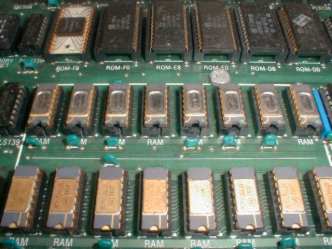

Wozniak added other features that he felt were important for a computer that was useful, one that he would want to own. Since the 6502 processor could address a total of 64K of memory, he designed the computer with the ability to use either 4K RAM chips, or the newer (and more expensive) 16K RAM chips. The first Apple II's came standard with 4K of memory, and more could be added, to a maximum of 12K (if using the 4K chips) or 48K (if using the 16K chips). Specially wired strapping blocks attached to the motherboard told the Apple II how much memory was present and where it was. According to the 1981 edition of the Apple II Reference Manual, the Apple could have memory in the following sizes: 4K, 8K, 12K,16K, 20K, 24K, 32K, 36K, or a full 48K. (These sizes were determined by the different ways that three RAM chips, either 4K or 16K, could be installed). The strapping blocks were even designed with the flexibility of allowing blank spots in memory if there were no RAM chips available to fill those spots.

[14]

The first 4K of memory always had to have RAM present, since it was used by the 6502 processor, the ROM routines, and the text screen display. If, for example, you only had two other 4K RAM chips to install and you wanted to display hi-res graphics, you could strap one chip to the lower half of hi-res memory from $2000-$2FFF, and the other to the upper half of hi-res memory from $3000-$3FFF.[2] Since 16K RAM chips cost about $500 when Wozniak designed the Apple II, not many users could afford them. Whereas the Commodore PET and the Radio Shack TRS-80 could not easily be expanded beyond the 4K they came with, the Apple II from the beginning was designed with expansion in mind.[3]

The row of eight expansion slots was another feature about the Apple II that was a strong selling point. Unlike the TRS-80 or PET, you could easily expand the Apple II by simply plugging a card into one of these slots. This degree of expandability made it more expensive to build, however. Steve Jobs didn't believe that anyone would ever need more than two slots, one for a printer and one possibly for a modem. Wozniak knew from his experience with computers at Hewlett-Packard that computer uses would always find something to fill those extra slots, and insisted that they keep the number at eight.[4]

One problem Apple had to deal with was getting FCC approval for the computer. The RF (radio frequency) modulator that had been designed gave off too much interference, and it was probable that the FCC would not approve it. (The RF modulator allowed a user to attach the Apple to a standard television receiver, instead of requiring the purchase of an expensive computer monitor). Rather than have the release of the Apple II delayed for re-engineering of the RF modulator to get that FCC approval, Apple gave the specifications for the RF modulator to Marty Spergel. He ran a small company (called M&R Electronics) that specialized in obtaining hard-to-get parts that electronics and computer hackers wanted for their projects. Their agreement allowed M&R to make and sell the RF modulators, while Apple could concentrate on making and selling the Apple II. Dealers would sell an Apple II with a "Sup'R'Mod" (costing about $30) if the buyer wanted to see the graphics on their color TV. Jobs assured Spergel that the item would sell well, maybe as many as fifty units a month. (Years later Spergel estimated that he had sold about four hundred thousand Sup'R'Mods).[5]

Other features that Wozniak (and Allen Baum, who helped him with the project) included in the Apple II ROMs included the terminal software to do screen text display, expanded Monitor functionality, and cassette input/output routines. They added the ability to split the screen into different sized windows. They also wrote a disassembler, which was one of the most important features of the Apple II from the beginning and a significant part of its open design. It allowed anyone to view the 6502 code that any program used, and matched the philosophy of the Homebrew Club of making all computer knowledge available to everybody. In the Apple-1 days, when Apple was supplying software "free or at minimal charge", Wozniak and Baum published an early version of their 6502 disassembler in a hacker's magazine. It was designed to be loaded in memory on the Apple-1 from $800 to $9D8 and the routine could be executed from the monitor. This early code was quit similar to the disassembler that was later included in the Apple II ROM.[6]

Having an expanded Monitor program in ROM and color graphics were not the only features in the Apple II that attracted people to it. Having Wozniak's BASIC language in ROM, available immediately when the power was turned on, made it possible for non-hackers to write programs that used the Apple II's color graphics.

An interesting bit of trivia about Wozniak's Integer BASIC was that he never had an assembly language source file for it. He wrote it in machine language, assembling it by hand on paper:

Even to this day there is not an official source code listing of Integer BASIC at Apple. One of the few errors I am aware of in the Integer interpreter is one involving a single byte. If a line is entered that has too many parentheses, the "TOO LONG" error message is displayed instead of the "TOO MANY PARENS" message.[8] Also, if a FOR - NEXT loop was nested (that is, had a FOR - NEXT loop within another FOR - NEXT loop), and if the program repeated entered the beginning of the loop without hitting the NEXT statement, it would eventually cause a crash.[12]

MEMORY MAP

To understand the memory layout of the Apple II, consider this analogy: Imagine a cabinet with sixteen shelves, and sixteen separate slots or pigeon holes on each shelf (similar to those found in old roll-top desks). Each slot refers to a specific address in memory on the computer, and each slot can hold a number between 0 and 255. (Since a byte is eight bits wide, the largest number that can be represented by eight binary bits is 255). The top shelf is row "0", and the leftmost slot in that row is slot "0". The address of that slot, then, is $00. As we move to the right, the addresses increase, $01, $02, $03, and so on to $0F at the end. We then go down to the next row, (row "1"), and the addresses continue in the same fashion with $10, $11, $12, and so on as before. The sixteenth row is row "F", the rightmost slot in that row is slot "F", and the address of that slot is $FF. This cabinet has, then, 256 slots (16 x 16), and represents what is called a "page" in the Apple memory. The cabinet itself has an address (since computers need addresses for everything), and this one's address is "00". The full address of row "5", slot "A" on cabinet "00" is $005A, and the value that is at that location (in this example) is "6F".

Only the Altair 8800 came with just 256 bytes of memory, so we have to account for the entire 64K memory space that the 6502 chip in the Apple II can handle. There is a cabinet sitting on top of cabinet "00", and it is laid out in the same fashion with its 256 slots in sixteen rows. This is cabinet "01", and on top of that one is cabinet "02"; this continues on up until we reach cabinet "FF" way up at the top. Apple programmers refer to these cabinets as "pages" of memory. There are 256 pages of memory, each with 256 bytes on a page, making a grand total of 256 x 256 = 65536 bytes of memory (or slots that can hold a number, if you prefer the analogy).

In discussing the memory map on the Apple II, we can refer to pages of memory with a hexadecimal two-digit number for shorthand if we wish. The general layout of the Apple II memory is as follows:

The memory space on the Apple II between $C000 and $CFFF was assigned to handle input and output. From $C000 to $C0FF the space was reserved for various soft-switches used to control the display, and various built-in I/O devices, such as the keyboard, paddles, annunciators, and the cassette port. (A soft-switch is simply a memory location that, when a number is stored there, changes something in the computer--such as switching on graphics mode). From $C100 to $CFFF the space was reserved for ROM on the plug-in peripheral cards for each of the seven slots. Slot 1 was given the space from $C100 to $C1FF, slot 2 from $C200 to $C2FF, and so on. The $C800 to $CFFF space was special slot-selectable ROM that was uniquely available for each of the seven peripheral cards. For example, a program running on the card in slot 6 to control a device could use the $C800-$CFFF space for its own purpose. When control passed to the card in slot 3, that card could use a program of its own that ran in the same $C800-$CFFF space. This was accomplished by allowing each card to have ROM code that covered pages $C8-$CF, and making that space "switchable", depending on which card wanted to use it. Having this space available made writing ROM code simpler, since it would not have to be capable of running at various memory locations (depending on which slot a card was plugged into).

The memory from $D000 to $D7FF and $D800 to $DFFF was empty on all early Apple II computers. On the motherboard were two empty sockets that were available for the user to plug in their own ROM chips. The $D000-$D7FF space was most often used by a plug-in ROM chip sold by Apple, known as "Programmer's Aid #1." It contained various utilities for Integer BASIC programmers, including machine language routines to do the following:

All the routines on the Programmer's Aid #1 ROM were written by Wozniak between June 1977 (the RAM test routine) and April 1978 (program renumber and append), except for the music routine, which was written by Gary Shannon.

The other empty ROM socket (covering memory from $D800 to $DFFF) was never filled by Apple. Various third-party vendors sold ROMs for that socket (or for the $D000-$D7FF socket used by the Programmer's Aid #1 ROM), but none made enough of an inroad to be preserved in the INTBASIC file that would later be included on the DOS 3.3 System Master disk. In fact, the $D800-$DFFF space in the INTBASIC file on that disk contains an image of that same space taken directly from the Applesoft ROM! It is completely useless to Integer BASIC, of course, but disk files being what they are, Apple had to fill that space with something!

The Integer BASIC interpreter lived in the ROM space between $E000 and $F7FF. However, BASIC only used the space up to $F424. Between $F425-$F4FB and $F63D-$F65D could be found a floating-point math package that was not used by Integer BASIC, but was available for BASIC programmers who were astute enough to figure out how it worked. (An early Apple user group, the Apple Pugetsound Program Library Exchange, or A.P.P.L.E., sold a tape and notes by Steve Wozniak they called "Wozpak", that documented some of the secrets of the Integer BASIC ROM). Between $F500-$F63C there was code that was known as the "miniassembler", which was executed starting at the ominous address $F666. The miniassembler allowed you to enter short machine language programs using the standard 6502 mnemonics (the three letter codes that referred to a specific type of operation; for example, "LDA #" represented the 6502 opcode $A9) instead of entering the program byte by byte in the monitor. The $F689-$F7FC space contained Woz's SWEET 16 interpreter. Wozniak wrote SWEET 16 to simulate a 16-bit processor; it simplified some routines he wrote for the Apple II ROMs, including the Programmer's Aid #1 renumber, append, and relocate routines. Simply put, he took a series of hex bytes, defined them as "opcodes" the way HE wanted them to function, and when executing the code used his SWEET 16 interpreter to translate the code into legal 6502 operations. It ran slower than standard 6502 code, but when memory space was at a premium it was better to have a slow program than to not have enough room for the program at all.

For those who are keeping count, there are a few unreferenced bytes in the latter part of the Integer ROM. Those bytes contained filler bytes that were not used as any program code.[9],[10],[11]

The last part of the Apple II memory, from $F800-$FFFF, contained Wozniak's Monitor program which has already been discussed above.
